Optimizing Milling Parameters to Solve Crown Fit Challenges

In digital dental laboratories, crown misfit after milling is a common challenge. Whether producing full-contour crowns or anterior aesthetic restorations, ill-fitting crowns affect patient comfort and increase rework. By optimizing milling parameters, laboratories can reduce errors and improve restoration fit.

Common Factors Leading to Crown Misfit

1. Incorrect Milling Program Settings
   If the CAD/CAM program is not tailored for specific material types and thicknesses, dimensional deviations occur. Materials like zirconia, PMMA, and wax have different shrinkage rates, which must be compensated in the milling strategy.
2. Worn or Improper Tool Selection
   Using worn or improperly sized tools impacts margin accuracy and internal fit. Regular inspection and proper tool diameter selection based on crown anatomy are recommended.
3. Machine Axis Calibration and Stability

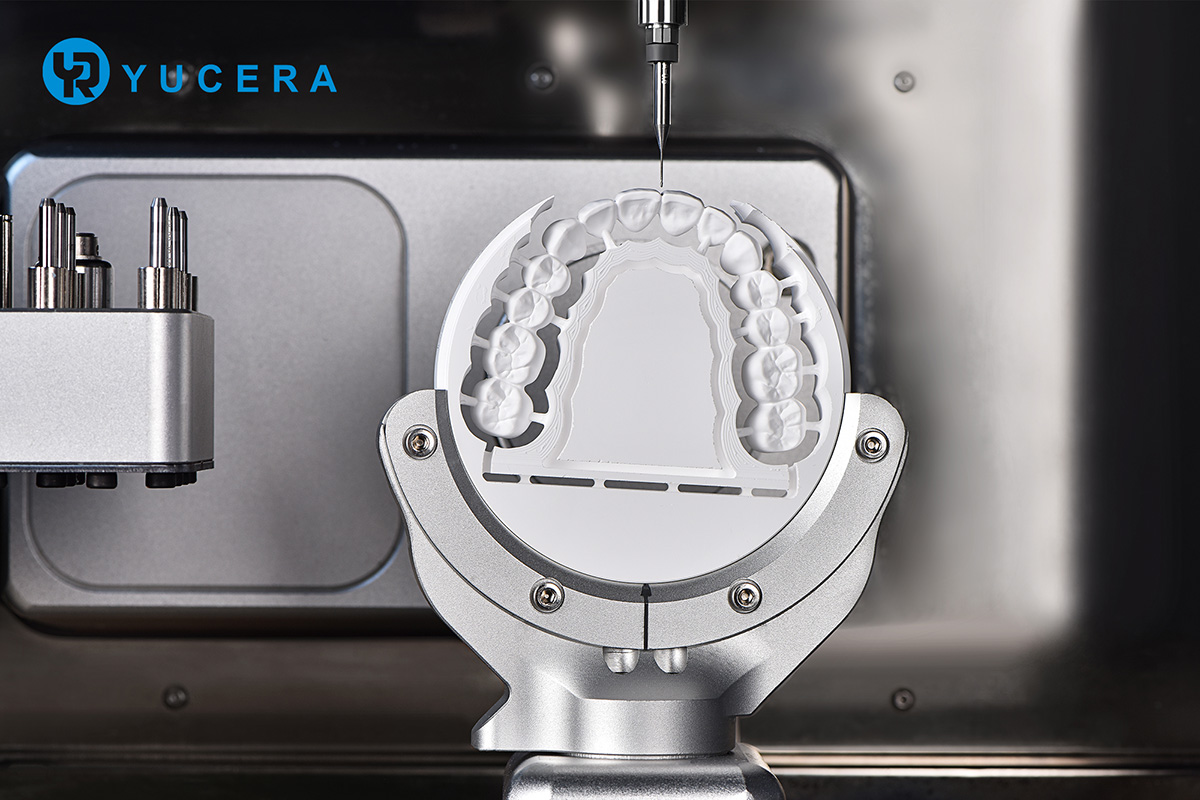

   In dry 5-axis milling, the B-axis rotation and spindle stability directly influence precision for multi-angle crowns. Regular machine calibration and monitoring for vibration and temperature variation are essential.

Optimization Strategies

• Material-Specific Program Adjustment
  Set CAD/CAM scaling parameters according to material shrinkage (e.g., zirconia ~20–25% sintering shrinkage; PMMA negligible).
• Tool and Path Optimization
  Use high-precision small-diameter tools (1.0–1.2 mm) for anterior teeth and complex bridges to reduce surface deviation.
• Machine Parameter Tuning
  Adjust spindle speed (e.g., 60,000 rpm) and feed rate to ensure stable dry milling. Utilize full B-axis range (+35°/-91°) to access deep cavities and anterior anatomy.

Implementing these strategies reduces crown misfit, improves batch consistency, and enhances lab productivity.

Conclusion

Optimizing milling parameters is essential to address crown fit issues. Digital dental laboratories should integrate material properties, tool selection, and machine stability into standardized workflows to ensure both aesthetic and functional crown restorations.
