Eastern Europe CAD/CAM Glaze Application Techniques 2026: Avoid Bubbles & Uneven Thickness

In Eastern European dental laboratories, the final glaze layer is often the difference between a restoration that looks natural for years and one that chips, stains, or fails prematurely. Even the highest-quality glaze paste can deliver poor results if the application technique is inconsistent.

Uneven thickness and trapped air bubbles are two of the most common problems reported by technicians in Poland, Russia, Romania, Hungary, and the Czech Republic in 2026. These issues lead to higher remake rates, compromised aesthetics, and increased thermal stress — especially problematic in the region’s large seasonal temperature swings.

This practical guide provides proven, easy-to-implement techniques for uniform glaze application on CAD/CAM zirconia restorations. Follow these steps to achieve smooth, bubble-free surfaces that enhance durability and patient satisfaction.

Why Uniform Glaze Application Is Critical in Eastern Europe

The glaze layer must be thin (ideally 30–60 μm), even, and free of voids. Any inconsistency creates weak points:

• Thick areas cool slower than thin areas → internal stress → higher risk of cracking during temperature changes.
• Trapped bubbles become stress concentrators and allow stain penetration over time.
• Uneven surfaces reduce light reflection, making restorations look artificial and increasing plaque accumulation.

In 2026, labs that master consistent glaze application report 60–75% fewer glaze-related remakes and significantly better long-term clinical performance, even under harsh Eastern European climatic conditions.

Essential Preparation Before Glaze Application

Proper surface preparation is 50% of success:

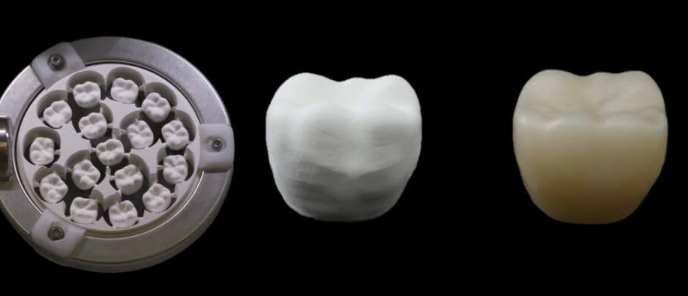

1. Clean the zirconia thoroughly Remove all milling dust, oils, and contaminants using steam cleaning or ultrasonic bath followed by 99% isopropyl alcohol. Any residue prevents proper wetting and bonding.
2. Inspect the surface Check for sharp edges, undercuts, or rough areas. Lightly polish if necessary to achieve a smooth pre-glaze surface (Ra < 0.2 μm recommended).
3. Control lab environment Maintain workshop temperature at 20–25°C and relative humidity below 55%. In winter months, allow restorations to reach room temperature before glazing.
4. Shake and condition the glaze paste Gently shake or stir the paste for 30–60 seconds to ensure even dispersion of particles. Never use paste straight from cold storage.

Proven Techniques for Uniform, Bubble-Free Glaze Application

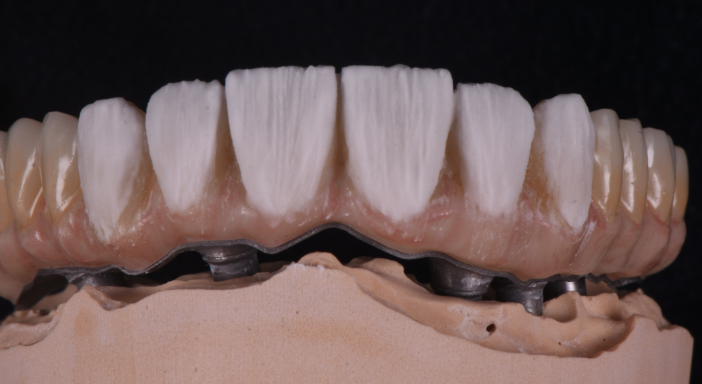

Technique 1: Thin, Controlled Layering (Recommended Method)

• Apply glaze in 2–3 very thin layers rather than one thick coat.
• Use a fine sable brush (size 0–2) or a dedicated glaze applicator.
• Load the brush lightly and apply with smooth, overlapping strokes from cervical to incisal/occlusal.
• After each layer, allow 30–60 seconds for slight drying before applying the next.

Technique 2: Vibration-Assisted Application

• Place the restoration on a small vibrator (low setting) during application.
• The gentle vibration helps the glaze flow evenly and releases trapped air bubbles.
• This technique is especially effective for complex geometries like bridges and full-arch restorations.

Technique 3: Compressed Air Bubble Removal

• After application, use a light stream of clean, dry compressed air (low pressure) from 10–15 cm away to burst surface bubbles without disturbing the glaze layer.

Technique 4: Correct Thickness Control

• Aim for a final fired glaze thickness of 30–60 μm.
• Use a digital thickness gauge or visual reference (glaze should appear slightly translucent, not opaque white).
• If the layer looks too thick, carefully remove excess with a clean, dry brush before firing.

Common Mistakes Eastern European Technicians Should Avoid

1. Applying too much paste at once → Leads to running, pooling, and thick spots.
2. Working in a cold or humid environment → Causes poor flow and trapped moisture bubbles.
3. Using an old or dried-out brush → Creates streaks and uneven coverage.
4. Skipping vibration or air removal → Leaves microscopic bubbles that expand during firing.
5. Firing immediately after application → Residual solvents cause bubbling and porosity.

Firing Tips to Lock in Perfect Results

• Place restorations on proper firing supports to allow even heat distribution.
• Follow the exact firing schedule recommended for your glaze paste.
• Use a slow ramp rate in the final 100°C to minimise thermal shock.
• Allow controlled cooling inside the furnace to room temperature.

Labs following these combined techniques consistently achieve >95% first-time glaze success rates, even on complex multi-unit restorations.

Final Checklist for Consistent Glaze Application in Eastern Europe

• Clean zirconia surface completely
• Condition glaze paste properly
• Apply in 2–3 thin layers
• Use vibration or compressed air to remove bubbles
• Control final thickness to 30–60 μm
• Fire according to exact parameters
• Inspect under good lighting before delivery

Conclusion: Master Glaze Application for Better Restorations in 2026

Uniform, bubble-free glaze application is a learnable skill that delivers outsized returns in Eastern European labs. By combining proper preparation, thin layering technique, bubble removal methods, and disciplined firing, technicians can dramatically reduce glaze failures and produce restorations that withstand the region’s challenging temperature conditions.
